20W Air-Cooling Hydrogen Fuel Cell Stack

Gatechn New Energy Technology (Shanghai) Co.,Ltd. focuses on the research, development and manufacturing of hydrogen fuel cells, its core materials and key components. It’s a high-tech company and which is dedicated to the Hydrogen Fuel Cell membrane electrode (MEA), hydrogen fuel cell stack system and other related equipment.

Product Details

Product Tags

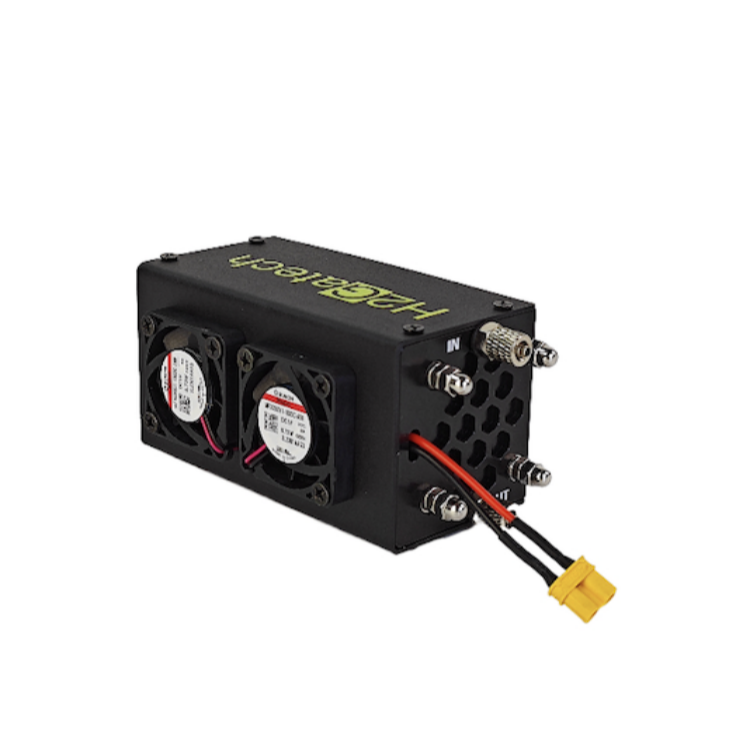

20W Air-Cooling Hydrogen Fuel Cell Stack
Model Number20W Air-Cooling
Number of Cells20
Operating Voltage10-17V
Operating Current0-2.5A
Working Temperature-5~35℃
Hydrogen Consumption295ml/min
Hydrogen Pressure0.05~0.06Mpa
Hydrogen Purity≥99.99% (CO<1PPM)
Working Environment Humidity10%~95% (No mist)
Noise≤70dB
Stack with Fan (mm)110*46*48
Controller (mm)63*55*30
Weight (g)290 ± 10

If you require fuel cells with different power ratings,get in touch with our team to explore the accessories, new DC/DC power conversion devices, pressure regulators, hydrogen filling hoses, DC/AC, and other system components you may need.


Q&A

When was your company established? What are your advantages?

We were established in 2019, Established with the participation of multiple industry experts, our company is headquartered in Zhejiang. Our operational team consists of technical experts with extensive experience in the field of hydrogen fuel cell research and development.

We have established comprehensive cooperative relationships with several renowned domestic universities and research institutes, providing advanced technical expertise and resource support for hydrogen fuel cell research and development.


What is the minimum order quantity for your products?

One piece


Do you have it in stock?

No, our products need to be ordered and produced.


What is your delivery time?

Delivery time varies from 5 to 20 business days depending on the order.


What are your main products?

Hydrogen Fuel Cell membrane electrode (MEA),PEM CCM, hydrogen fuel cell stack system and other related equipment.


Do you provide samples?How to get samples?

Samples are available upon placing an order.


What are your payment terms?

Prepayment 100%
