High Quality-Industry PEM 10-200Nm³/h-Manufacturer-Factory-H2Gatech

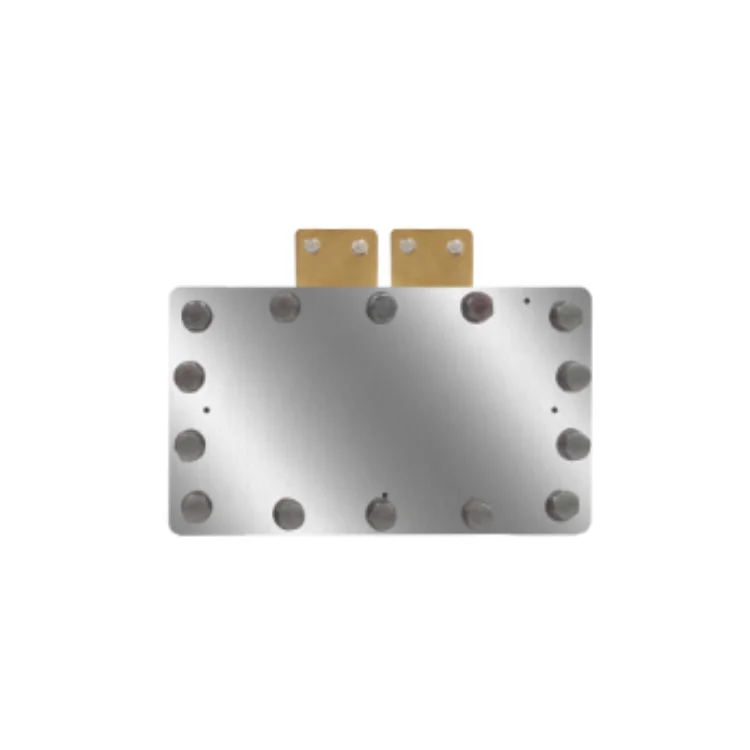

Industry PEM 10-200Nm³/h

Gatechn New Energy Technology (Shanghai) Co.,Ltd. focuses on the research, development and manufacturing of hydrogen fuel cells, its core materials and key components. It’s a high-tech company and which is dedicated to the Hydrogen Fuel Cell membrane electrode (MEA), hydrogen fuel cell stack system and other related equipment.

INQUIRY

Product Details

Product Tags

	H2G-0.5	H2G-001	H2G-002	H2G-003	H2G-004	H2G-005
Hydrogen Production Nm³/h	0.5	1	2	3	4	5
Rated Current DCA	98	98	98	510	510	510
Voltage Range DCV	22-30	44-60	86-120	25-35	35-42	44-60
Energy Consumption kW·h/m³	≤4.50	≤4.50	≤4.50	≤4.50	≤4.50	≤4.50
Numbers of Cell	12	24	48	14	19	24
Electrolysis Efficiency	80%	80%	80%	80%	80%	80%
Operating Temperature ℃	40-50	40-50	40-50	40-50	40-50	40-50
Water Quality Requirement MΩ·cm²	≥15	≥15	≥15	≥15	≥15	≥15
Hydrogen Side Pressure MPa	≤3.2	≤3.2	≤3.2	≤3.2	≤3.2	≤3.2
Water Side Pressure MPa	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5
Electrolyzer Dimensions mm	25414190	254141127	254141200	509284130	509284145	509284160

More info: Please contact us!
